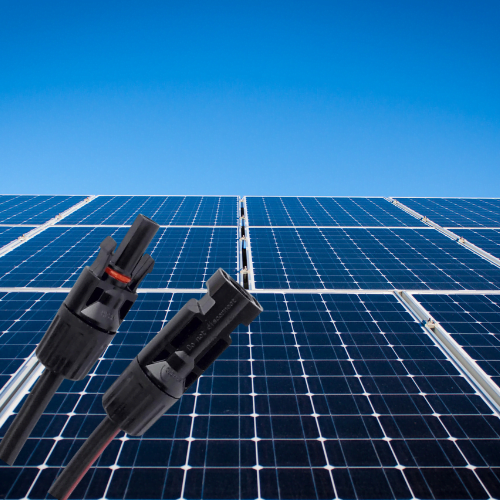

MC4 Solar Connectors in Bangalore are essential components in solar power systems, used to securely connect solar panels to each other and to other system components like inverters and charge controllers. These connectors are designed to handle high voltages and currents while ensuring reliable and safe electrical connections. They feature a robust design to withstand outdoor conditions, including UV exposure and extreme temperatures.

Specifications:

• Material: Hard plastic (PPO) with copper-tin plated contacts
• Rated Voltage: 1000V DC
• Current Rating: 30A
• Contact Resistance: ≤ 0.5 mΩ
• Temperature Range: -40°C to +85°C
• IP Rating: IP67 (dustproof and waterproof)
• Connection Method: Crimping or plug-in
• Certifications: UL, TUV, CE
• UV Resistance: Yes

Types of Solar Connectors and Specifications:

1. MC4 Connector:
   • Description: The most commonly used connector in solar installations, featuring a single-contact design with a secure locking mechanism.
   • Benefits: Provides reliable, weatherproof connections with minimal power loss and easy installation.
2. MC3 Connector:
   • Description: An older version of solar connectors with slightly lower ratings compared to MC4. Suitable for smaller or older solar systems.
   • Benefits: Cost-effective and reliable, though less commonly used in new installations.
3. Y-Branch Connector:
   • Description: Allows the connection of multiple solar panels in parallel, increasing the overall system capacity.
   • Benefits: Facilitates the expansion of solar panel arrays and simplifies wiring for parallel configurations.
4. T-Branch Connector:
   • Description: Used for series-parallel connections, enabling more complex configurations in solar installations.
   • Benefits: Offers flexibility in designing and expanding solar power systems, allowing for efficient energy distribution.

Applications:

• Residential Solar Systems: Connects solar panels to the inverter and other system components in home solar installations.
• Commercial Solar Installations: Used in larger-scale solar power systems to connect multiple panels and ensure efficient energy transfer.
• Industrial Solar Projects: Handles high power outputs in large industrial solar farms, ensuring reliable and secure connections.
• Off-Grid Systems: Ideal for remote solar setups where durability and weather resistance are crucial.

Key Benefits:

• Secure Connections: Locking mechanism ensures a firm and reliable connection, preventing accidental disconnections.
• Weatherproof: Designed to withstand harsh outdoor conditions, including UV radiation, rain, and dust.
• High Voltage and Current Ratings: Capable of handling high voltages up to 1000V DC and currents up to 30A.
• Easy Installation: Quick and straightforward installation process with simple crimping or plug-in methods.
• Durable and Long-Lasting: Made from high-quality materials for extended service life in demanding environments.
